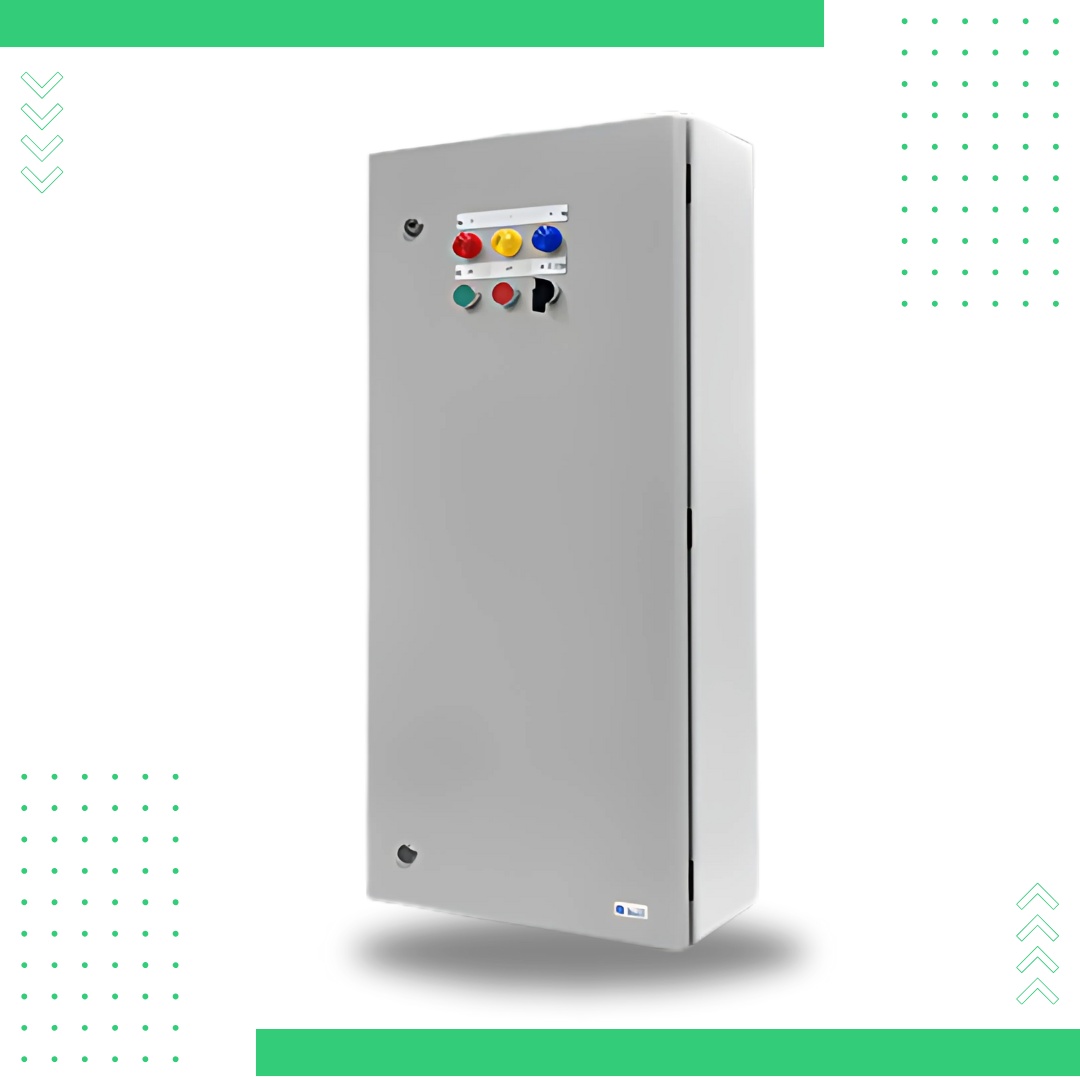

Description

Technical Specifications

• Compliance & Testing: Fully compliant and type-tested as per IEC 61439-1 & IEC 61439-3 standards.

• Rated Current: Supports up to 250 A.

• Busbar System: Fully insulated for enhanced safety and reliability.

• Short Circuit Withstand: High-capacity busbar tested for 25 kA short-circuit endurance.

• Modular Design: Supports multiple outgoing feeder connections for flexible configurations.

• Optional Metering:

  • Ammeter & Voltmeter can be integrated using a separate metering kit (mounted above the panel board).

• Busbar Construction:

  • Earth & Neutral: Single solid-piece brass busbar for robust performance.

• Applications: Suitable for indoor & outdoor use with protection rating up to IP66.

• Color: Standard finish in RAL 7035 (custom colors available upon request).
