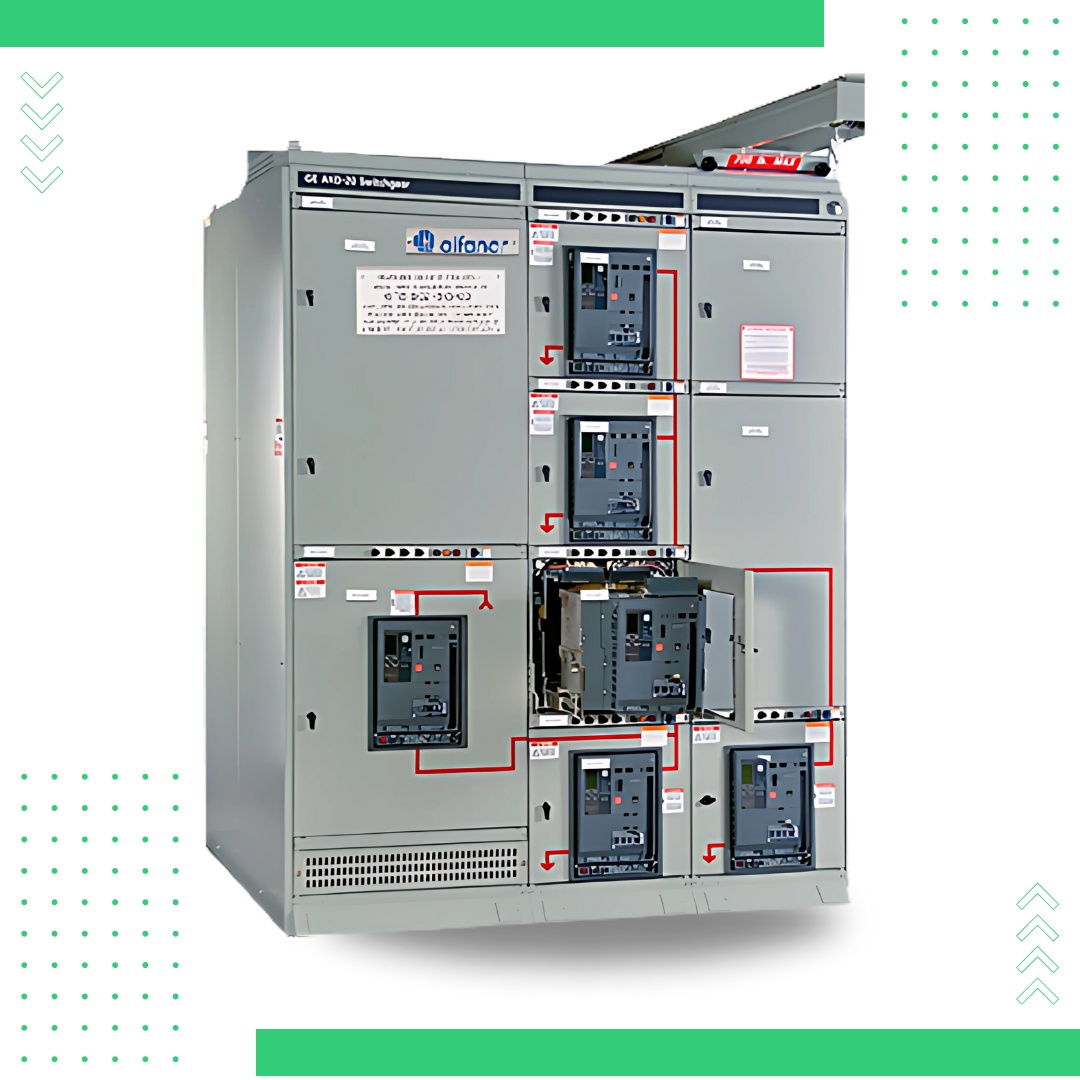

Low-Voltage Switchgear for Oil & Gas Industries

Engineered to meet North American ANSI standards, our robust low-voltage switchgear delivers superior protection for critical oil and gas operations. Featuring advanced safety technologies including non-vented panels, isolated bus systems, and EntelliGuard® breaker protection.

Technical Specifications:
• Voltage: 600V AC, 3-Phase (3/4 Wire)
• Bus Capacity: 800A – 5000A
• Short-Circuit Rating: 65kA – 150kA
• Enclosure: NEMA 1 to NEMA 3R
• Safety Features: Arc flash mitigation, UL1066 compliant draw-out breakers
• Modular Design: Up to 4 tiers per section
• Dimensions: 22”/30”/38”W x 60”/67”/74”D
• Standards Compliance: ANSI 61 color, Saudi Aramco 16-SAMSS-502
• Special Features: Retrofit-ready configuration
